How Do I Install and Plug In the OneSync Under Cabinet Puck Lights?

Installing the OneSync Under Cabinet Puck Lights with plug

The Feit Electric OneSync Under Cabinet Puck Lights can be plugged in or hardwired with a separately sold hardwire converter (available March 2021).

Get Ready For Installation

Before getting started you'll need:

1. Your OneSync Under Cabinet Puck Lights and all its contents
2. Tools: Philips head (+) screwdriver, pencil

OneSync Under Cabinet Puck Light Installation

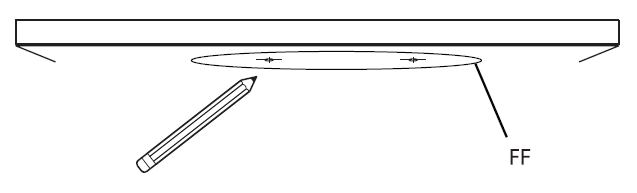

1. Position your puck light

Find the desired place for your puck light and make a clear mark using the provided mounting bracket.

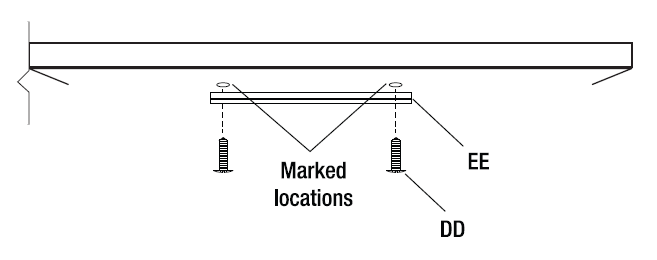

2. Install the mounting bracket

Screw in your mounting brackets (EE) with the mounting screws (DD) on the marked locations.

3. Install Your Puck Lights

Be sure to align the keyholes on the fixture to the mounting bracket. Then, twist and lock the fixture into place by holding and gently rotating your puck lights counter-clockwise.

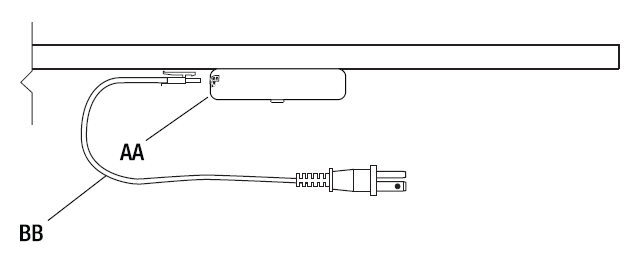

4. Connect the electrical plug

Plugin the electrical plug (BB) to your puck lights (AA). You can connect the electrical plug to either side of your puck lights. *NOTE: Be sure NOT to connect the electrical plug to a wall power source until after you have connected to your puck lights (AA).

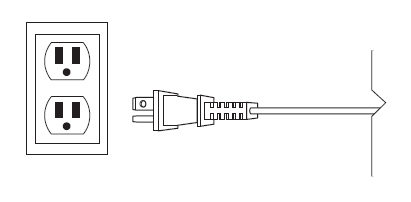

Connect to a power outlet

Connect your electrical plug (BB) to a power outlet on the wall.

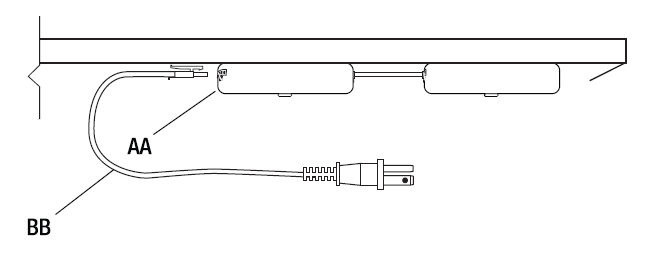

Optional: Link Multiple Puck Lights

If you would like to link multiple puck lights, follow steps 1-4. Then, connect the puck lights to the power outlet on the wall using the provided electrical plug (BB).

For detailed instructions, please reference the Feit Electric OneSync Under Cabinet Puck Lights installation guide.

Note: If you plan on hardwiring your OneSync Puck Lights and you purchased the OneSync wall remote control, please pair the lights to the remote first. Follow the instructions in How to Pair the OneSync LED Lighting System Remote Controls
