How Do I Install the OneSync Handheld Remote Control?

Installing the OneSync Wall and Handheld Remote Control

Watch the video or read on below for instructions on how to install the OneSync handheld remote control

Get Ready For Installation

Before getting started you'll need:

1. Your OneSync Handheld Remote Control
2. Tools: Philips head (+) screwdriver, flathead (-) screwdriver, pencil

OneSync Handheld Remote Control Screw Mount Installation

1. Position your handheld remote

Locate the desired location for the mounting plate (BB) and make a clear mark using the provided mounting guide (DD).

2. Separate the mounting plate

With your flathead (-) screwdriver, carefully separate the front of the mounting plate (BB) from the backplate.

3. Install the mounting plate

Screw in the backplate of the mounting plate (BB) using the provided mounting screws (CC) on the marked location.

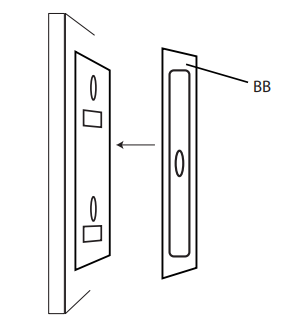

4. Install the mounting plate

Snap the front of the mounting plate (BB) to the mounted backplate.

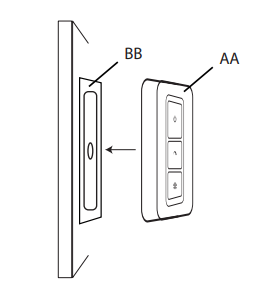

5. Attach your remote to the mounting plate

Attach the handheld remote (AA) to the metal mounting plate (BB) via the magnet on the back of your handheld remote (AA).

OneSync Handheld Remote Control Adhesive Mount Installation

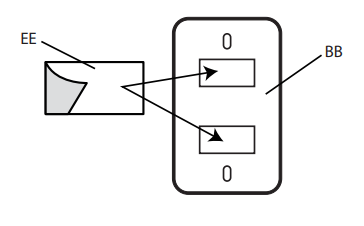

1. Install the 3M tape on the mounting plate

Remove one side of the adhesive backing paper on the 3M tape (EE), then place in the indents on the back of the mounting plate (BB).

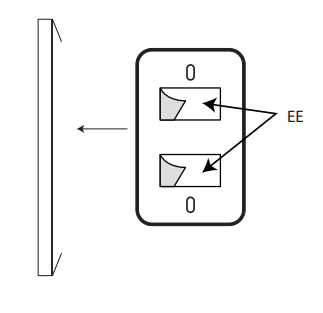

2. Install the mounting plate

Remove the adhesive paper on the back of the 3M tape (EE) and place it on your desired location.

3. Attach your handheld remote to the mounting plate

Attach your handheld remote (AA) to the metal mounting plate (BB) via the magnet on the back of your remote (AA).

For detailed instructions, please reference the Feit Electric OneSync Handheld Remote installation guide.
