Installing the OneSync Under Cabinet Flat Panel with plug
The Feit Electric OneSync Under Cabinet Flat panel can be hardwired or plugged in with a separately sold electrical plug (available March 2021).
Get Ready For Installation
Before getting started you'll need:
- Your OneSync Under Cabinet Flat Panel and all its contents
- Tools: Philips head screwdriver (+), pencil
OneSync Under Cabinet Flat Panel Installation

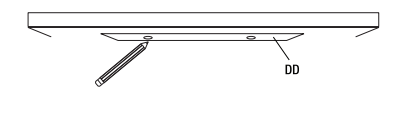

1. Position the flat panel
Locate the desired place for your OneSync Under Cabinet Flat Panel. Make a clear mark on the surface using the mounting bracket template provided.

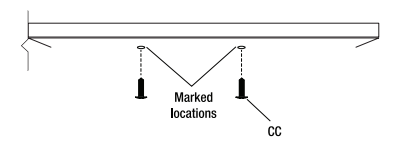

2. Install the Mounting Screws
Screw in the mounting screws (CC) on your marked locations. Be sure to leave a gap of 0.08-0.10 inches between the screw head and the installation surface.
3. Install OneSync Under Cabinet Flat Panel
Align the holes on the back of the fixture to the heads of the mounting screws. Slide the flat panel forward to secure it into place. Make sure your flat panel is snug. If your flat panel is NOT snug, remove it and readjust the screws.
Connect to a Power Outlet
Plug in the electrical plug to your flat panel. *Electrical plug sold separately (available March 2021). Then, connect the electrical plug to a power outlet on the wall.

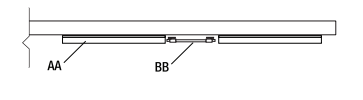

Optional: Link Multiple OneSync Under Cabinet Flat Panels
To link multiple OneSync Under Cabinet Flat Panels, connect using the provided linking cable (BB).
For detailed instructions, please reference the Feit Electric OneSync Under Cabinet Flat Panel installation guide.
