How Do I Install the OneSync 2 AC Outlet Line Adapter?

Installing the OneSync AC Outlet Line Adapter with plug

Watch this video or read the instructions below to install your OneSync Line Adapter

Get Ready For Installation

Before getting started you'll need:

1. Your OneSync 2 AC Outlet Line Adapter and all its contents
2. Tools: Philips head (+) screwdriver, pencil
3. Optional tools: Drill, 3/16 inch drill bit
4. Make sure your power is turned OFF at the fuse box or circuit breaker

OneSync 2 AC Outline Line Adapter Mount Installation

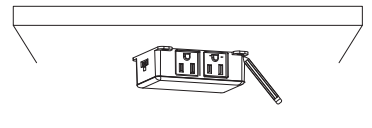

1. Position your 2 AC line adapter

Locate the area to mount your 2 AC line adapter and use a pencil to mark the four mounting points.

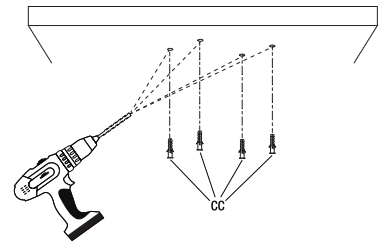

(Optional) Drywall drilling

If mounting on drywall, drill the marked holes using a 3/16 inch drill bit, and insert the anchors (CC).

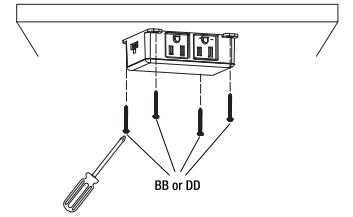

2. Mount Your 2 AC line adapter

If mounting on wood, take your Philips head (+) screwdriver and screw in the wood mounting screws (BB). If mounting on drywall, take your Philips head (+) screwdriver and screw in the drywall mounting screws (DD).

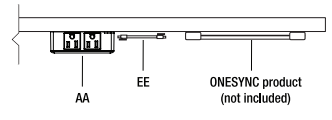

3. Connect your OneSync Products

To connect your OneSync products, use the linking cable provided (EE).

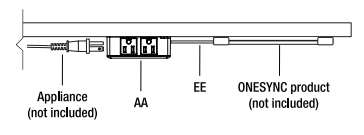

4. Connect Additional Appliances and restore power

Connect your additional appliances to the 2 AC Outlet Line Adapter. Be sure to NOT exceed a maximum of 10A. Restore power at the breaker or fuse box before operating.

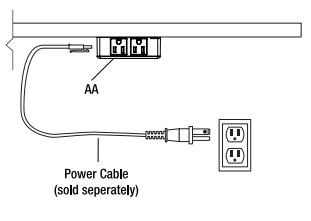

(Optional) Connect to a Power Outlet

You can also power by connecting your OneSync 2 AC Outlet Line Adapter to a power outlet with a separately sold power cable.

For detailed instructions please reference the Feit Electric OneSync 2AC Outlet Line Adapter installation guide.
