Installing the OneSync Under Cabinet Light Bar with Plug
The Feit Electric OneSync Under Cabinet Light Bar can be plugged in or hardwired with a separately sold hardwire converter (available March 2021).
Get Ready For Installation
Before getting started you'll need:
- Your OneSync Under Cabinet Light Bar and all its contents
- Tools: Philips head screwdriver (+), pencil
OneSync Under Cabinet Light Bar Installation
1. Position the light bar

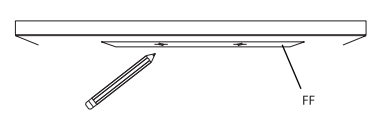

Locate the desired place for your OneSync Under Cabinet Light Bar. Make a clear mark on the surface using the mounting bracket template provided.
2. Install the mounting brackets

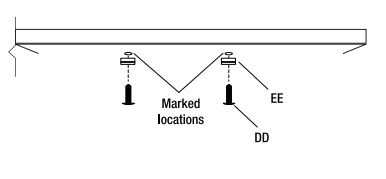

Screw in the mounting brackets (EE) provided using the mounting screws (DD) on the marked locations.
3. Mount your light bar

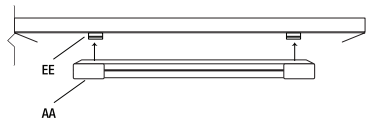

Align your light bar (AA) and snap it on the mounting brackets (EE).
Connect to a Power Outlet

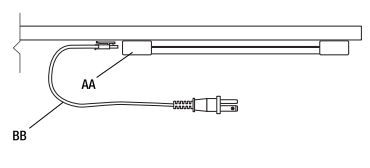

Plug in the electrical plug (BB) to your light bar (AA). Then, connect the electrical plug to a power outlet on the wall.
Optional: Link Multiple Light Bars
If you would like to link multiple light bars, follow steps 1-3 to install additional light bars. Connect the light bars (AA) using the provided linking cable (CC).
For detailed instructions, please reference the Feit Electric OneSync Under Cabinet Light Bar installation guide.
