How Do I Set Up My Vista 24-Inch Oval Flush Mount LED Skylight?

Where can I find set up guide information for the Vista 24-Inch Oval Flush Mount LED Skylight?

Setting up your new Feit Electric Vista Skylight is a breeze with this step-by-step guide. This article covers everything from unboxing to lighting up your space. Make sure power is turned off at the circuit breaker before beginning installation.

Key Areas Covered:

Model Number: FP24RT/SKY/5CCT/WH

Unboxing & What’s Included

• 1x LED Skylight Fixture
• 1x Mounting Bracket
• Mounting Hardware (screws, wire connectors)
• Installation Guide

Powering the Device
This product must be hardwired to a standard 120V power source. No batteries or plugs are required.

Common Setup Issues
Make sure wires are connected securely. The light won't function if the hot, neutral, or ground wires are loose or misconnected.

Set up Steps:

1. Turn Off Power: Switch off power at the circuit breaker to the area where you'll install the light.

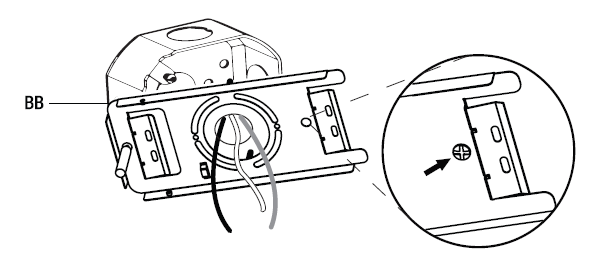

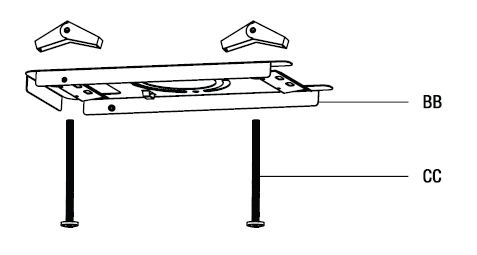

2. Mount Bracket: Secure the provided mounting bracket to your ceiling electrical box using the included screws.

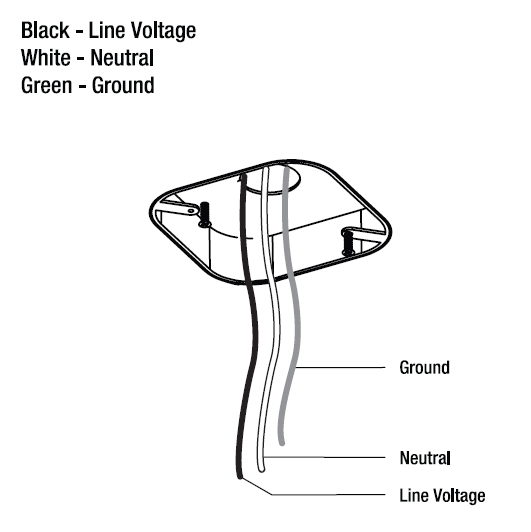

3. Wire Connections: Connect the fixture wires (black to black, white to white, and green to ground). Use the included wire connectors.

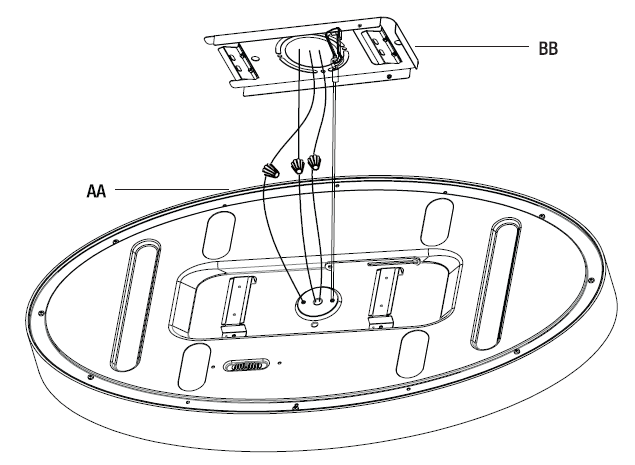

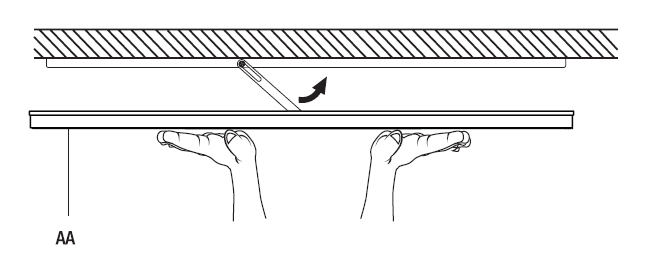

4. Attach Fixture: Align and secure the skylight fixture to the mounting bracket.

5. Test Light: Restore power and test all three MultiModes (Skylight + White Light, White Light Only, Skylight Only).

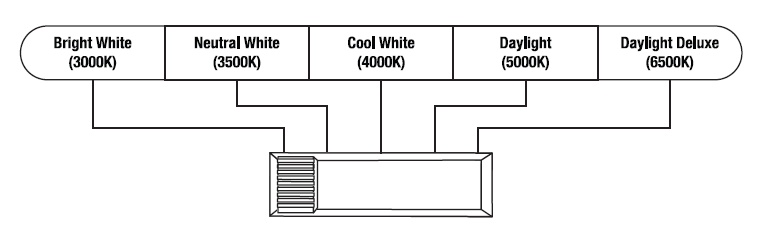

6. Adjust Color Temperature: Use your wall switch to toggle through the 5 CCT options during initial setup or as needed.

FAQs

• Do I need a special dimmer?
  A compatible LED wall dimmer is recommended for best performance.
• Can I install it without an electrician?
  While it’s possible for those with electrical experience, we recommend hiring a licensed professional.

Usage & Tips:

• Flip the wall switch off/on within 3 seconds to cycle through lighting modes.
• During installation, label wires to avoid confusion.
• Mount in a central location for even light distribution.
